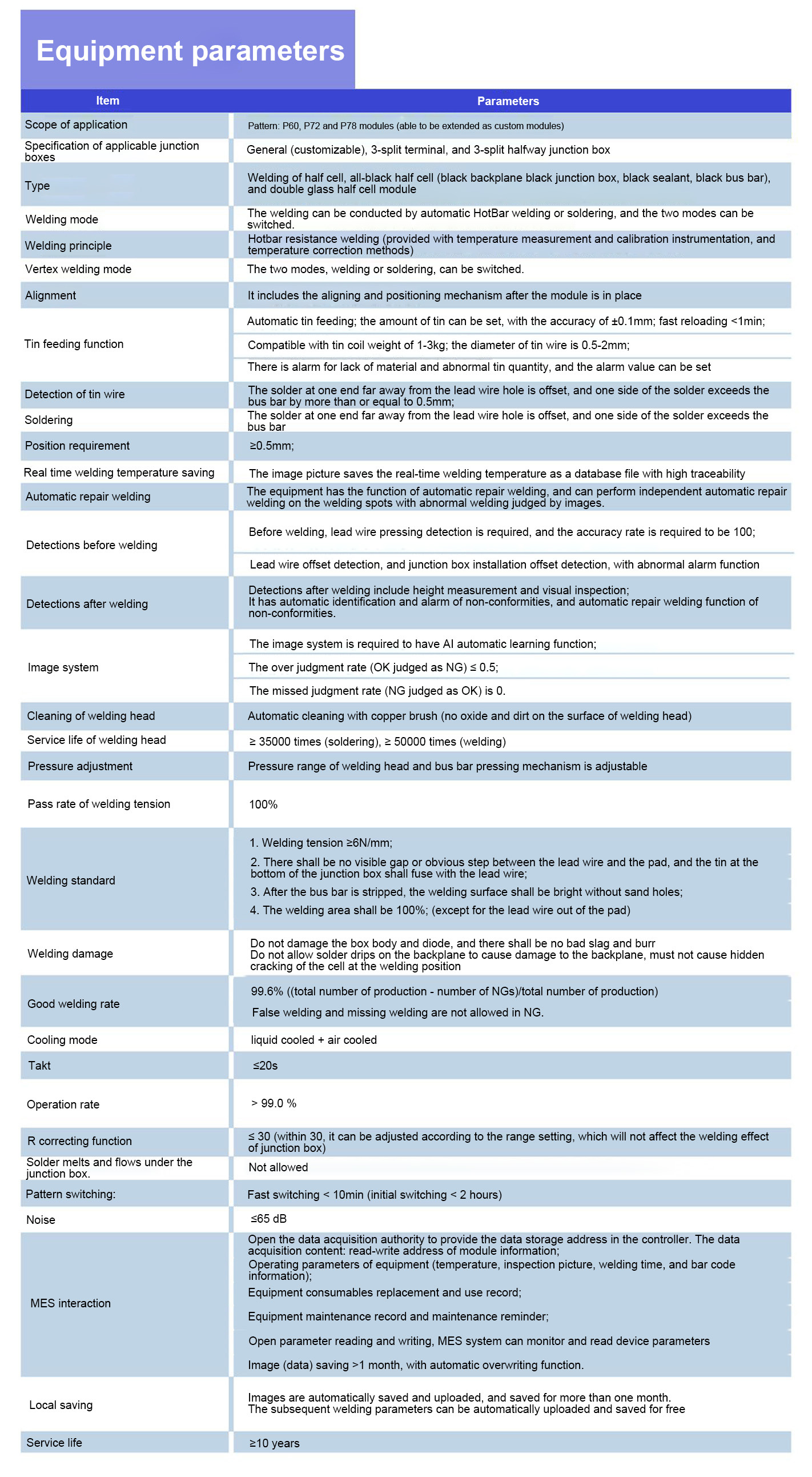

Basic design parameters of equipment
1. Product type: applicable to 5BB/9BB cell, half cell, double glass, single junction box and 3-split junction box;
2. Product size: maximum size of modules: 2600*1600, minimum size: 1644mm*985mm, and the frame thickness is 20-45mm.
3. Maximum module weight: 50kg/pcs;
4. Alignment size: the maximum size of the long side is 2600 mm, the maximum size of the short side is 1600mm.
5. Height of material flow line 950±50mm
